Author
|
Topic: UHSDR-OVI40 eigenständige UI Baugruppe (Layout) im Forum (Read 81020 times)
|
|
DL2GMI - Michael (H44MI)
alter Hase
Offline
Posts: 371
|
|
Re:UHSDR-OVI40 eigenständige UI Baugruppe (Layout) im Forum
« Reply #390 on: 25. July 2017, 17:34:40 »
|
|
Für diese (schönen!) Frontplatten gibt es bestimmt Dateien, die man auf das neue Layout anpassen kann.
Ich wäre z.b. schon ein abnehmer für eine solche Frontplatte, wenn der neue "marktreif" ist.
|
|
Logged
|
UI 4, RF 4, Mods: UI-H-031,RF-05-H-001,RF-H-002,UI-H-003,UI-H-004,RF-H-005,UI-H-006,UI-H-008,RF-H-018,RF-H-023,UI-H-027,RF-H-029,UI-N-026,RF-N-009,RF-N-010,RF-N-011,RF-N-012,AG-N-013,RF-N-015,RF-N-016,UI-N-019,UI-N-025,RF-N-028,RF-N-030
|
|
|
DG2NPE
noch länger dabei
Offline
Posts: 132
Ich liebe dieses Forum!
|
|
Re:UHSDR-OVI40 eigenständige UI Baugruppe (Layout) im Forum
« Reply #391 on: 25. July 2017, 17:45:38 »
|
|
Würde mich dem anschließen. . . Gegen Kostenaufwand. .
73 Peter, DG2NPE
|
|
Logged
|
|
|
|
Michael_K
Urgestein
Offline
Posts: 638
Ich liebe dieses Forum!
|
|
Re:UHSDR-OVI40 eigenständige UI Baugruppe (Layout) im Forum
« Reply #392 on: 25. July 2017, 18:00:42 »
|
|
n'abend, es kursieren ja schon diverse FPD-Dateien (SCHAEFFER) hier im Forum. Mein eigener Entwurf ist dem von Harri ähnlich, nur mit anderen Außenmaßen (gehäusebedingt) und wartet eigentlich nur auf das endgültige ui-i40-Board und dem "Aufschlagen" dessen bei mir zwecks Abschlußprüfung. vy 73 aus Erfurt Michael_K
|
|
Logged
|
|
|
|
KevinA
Neuling
Offline
Posts: 16
It's English
|
|
Re:UHSDR-OVI40 eigenständige UI Baugruppe (Layout) im Forum
« Reply #393 on: 23. September 2017, 22:08:06 »
|
|
Looks like I'm late getting to this party! A couple of issues with mcHF and this layout: 1. The Stereo jack, MX-387GL single source. In the US they are imported collectables at $6 a piece 2. The Display, I understand the MCU memory limitations but H7 parts have 2mb of ram and the ability to use external ram. Use RGB to HDMI $2 chip so the connection to the display is flex cable, on the display side another $2 chip for HDMI to RGB. In a perfect world DSI would be good but two years ago every DSI version was different. It appears this board is using the same setup as mcHF requiring a shield for the 3.2" display. I'm trying to do a shield for the NUCLEO-H743ZI using the Morpho connectors that would allow the RF board and display to be used. This maybe more work than it's worth.
|
|
Logged
|
Kevin K2AAE
|
|
|
|
KevinA
Neuling
Offline
Posts: 16
It's English
|
|
Re:UHSDR-OVI40 eigenständige UI Baugruppe (Layout) im Forum
« Reply #395 on: 24. September 2017, 21:02:51 »
|
|
always on paper and in your thoughts....
|
|
I thought I'd found the solution to the display issue (1080>Display) with the i.MX7D with dual ARM7 + a M4 but after buying a developer board I found out it was smoke and mirrors: Can not do more that 720X480. Their answer is the i.MX8 with GPU units so not only mixed ARM cores with real time M4 but GPU units with a NEON coprocessor. The ST H7 I'm getting has a few pages of what doesn't work, the i.MX8 will be a book.
|
|
Logged
|
Kevin K2AAE
|
|
|
DG8YGW
positron schon länger dabei
Offline
Posts: 93
|
|
Re:UHSDR-OVI40 eigenständige UI Baugruppe (Layout) im Forum
« Reply #396 on: 22. January 2021, 12:06:14 »
|
|
Hallo,

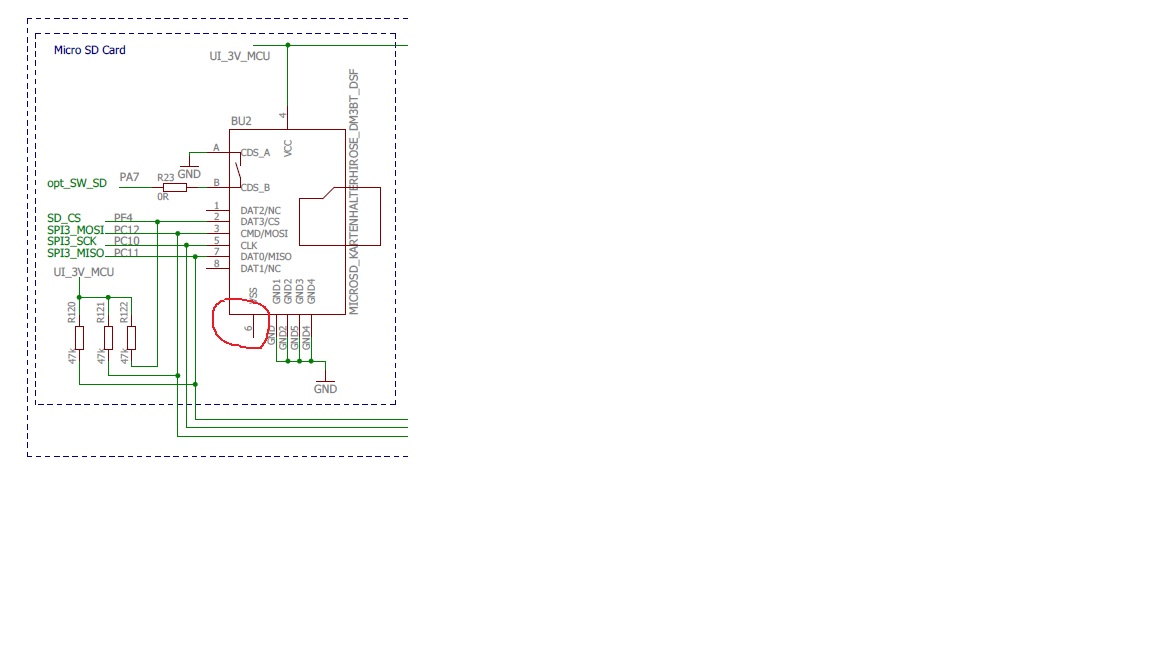

es ist zwar schon eine Weile vergangen, aber ich habe es erst in den letzten Tagen endeckt, es gibt einen Design Fehler auf dem UI Board am Anschluß der uSD-Card Adapters. Pin 6 ist nicht mit Masse verbunden.
73 Ralf
|
Ralf, DG8YGW JO31LM DOK L03
|
|
|
peter_77
Urgestein
Offline
Posts: 735
THE mcHF and UHSDR forum !
|
|
Re:UHSDR-OVI40 eigenständige UI Baugruppe (Layout) im Forum
« Reply #397 on: 30. January 2021, 16:38:11 »
|
|
Das Thema Micro SD Slot im OV I40 ist ja was die Software Unterstützung anbetrifft generell eh tot. Da ist es dann wohl Wumpe ob Pin 6 an Masse liegt oder nicht. Macht eher Sinn den Card Adapter erst gar nicht zu bestücken !
|
« Last Edit: 30. January 2021, 16:39:08 by peter_77 » |
Logged
|
|
|
|
|
|
|
|
