STM32 clones
« on: 08. January 2020, 09:48:56 »

Hi all,
I found elsewhere that there is company in China who produces a huge set of clones of digital chips, some of them are the ARM based microcontrollers. More precisely the ST microcontrollers... It's name is GigaDevice. I'm not proud of it but our local seller has noticeable quantities in warehouse:

https://www.tme.eu/pl/en/details/gd32f405vgt6/microcontrollers-others/gigadevice/

Has anyone used these chips?
Logged

73 Slawek
SP9BSL
positron
alter Hase
****

Offline

Posts: 443





View Profile WWW
Re:STM32 clones
« Reply #1 on: 09. January 2020, 08:37:23 »

Hi Thomas,
thanks, good to know that STlink sees it as own device.
Side note - I hope will not be forced to use them someday...
« Last Edit: 09. January 2020, 08:37:39 by SP9BSL » Logged

73 Slawek
dg9bfc_sigi
I40-Mitglied
noch länger dabei
***

Offline

Posts: 160



DG9BFC

View Profile WWW E-Mail
Re:STM32 clones
« Reply #2 on: 01. July 2020, 00:46:30 »

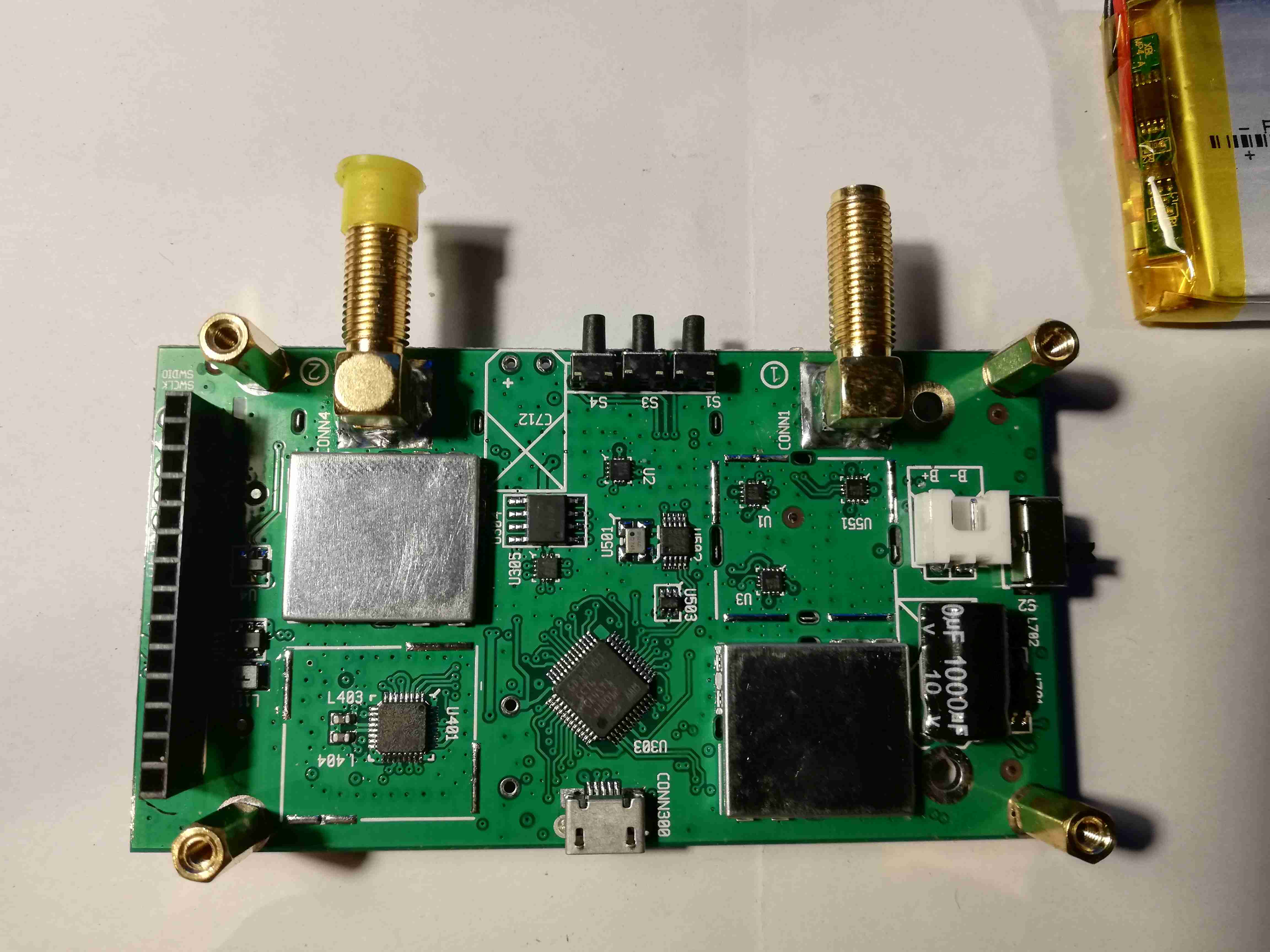

a few days ago i got my new antenna analyzer (saa2) and there they also use a "clone" stm32
Logged

dg9bfc_sigi
I40-Mitglied
noch länger dabei
***

Offline

Posts: 160



DG9BFC

View Profile WWW E-Mail
Re:STM32 clones
« Reply #3 on: 01. July 2020, 00:47:36 »

and here all parts (i left away the calibration kit and the two coax cables)
Logged

dg9bfc_sigi
I40-Mitglied
noch länger dabei
***

Offline

Posts: 160



DG9BFC

View Profile WWW E-Mail
Re:STM32 clones
« Reply #4 on: 01. July 2020, 00:48:57 »

i plan to put on a bigger (4inch) display and mount it in a metal case with a few 18650 cells

the stm32 "clones" seems to do their job well ... grin

analyzer was cheap (roughly 60 eu) ... you also can get them WITH case for 85 to 90 eu but cause i plan to put on a bigger display anyway i bought the bare model with no case

pay attention ... some are sold without calibration kit and/or battery

and nearly all sellers on evilbay sell clones of the saa2

original source is tindie ...

« Last Edit: 01. July 2020, 00:52:53 by dg9bfc_sigi » Logged
DF8OE
Administrator
*****

Offline

Posts: 6280



Stellvertr. OVV I40, Jugend / Nachwuchsreferent

View Profile WWW
Re:STM32 clones
« Reply #5 on: 01. July 2020, 03:49:17 »

The LCD must have same controller and resolution - otherwise you must adapt the firmware, too.

vy 73
Andreas
Logged

Wenn der Wind des Wandels weht, nageln die einen Fenster und Türen zu und verbarrikadieren sich. Die anderen gehen nach draußen und bauen Windmühlen...
qrz.com-Seite von DF8OE
-----------------------------------------------------
>>>> Die Inhalte meiner Beiträge dürfen ohne meine explizite Erlaubnis in jedwedem Medium weiterverbreitet werden! <<<<
dg9bfc_sigi
I40-Mitglied
noch länger dabei
***

Offline

Posts: 160



DG9BFC

View Profile WWW E-Mail
Re:STM32 clones
« Reply #6 on: 29. July 2020, 14:29:10 »

there is an fw available for that bigger display
... and i do know somebody who added a bigger display to mchf (wink wink) ...
should be an easy change ...
another step bigger (5 to 10 inch) would mean another fw change (more pixels) ... and there is no fw for that available (yet) ...
maybe one day a clever programmer grabs the source and makes those changes ... till then i use the 4 inch
greetz sigi
Logged
SP9BSL
positron
alter Hase
****

Offline

Posts: 443





View Profile WWW
Re:STM32 clones
« Reply #7 on: 30. July 2020, 08:44:20 »

Hello Sigi,
I have nanoVNA with 2.8" display (the clone but with original stm- at least it looks so), it is truly small device - but with Rune's nanoVNA saver on the big screen - perfect, the official firmware suffers from low measurement points. There is alternative version with 201 points but under development.

I will wait for the 4" nanoVNA v2.0, athough Gabriel (Owocom) sometime ago denied this movement, maybe Hugen will do this and move the buttons from this strange location between rf connectors The community of nanoVNA is really huge, the v2.0 is growing too - I'm sure someone will modify the firmware soon, maybe even for bigger display than 4"...
« Last Edit: 31. July 2020, 13:49:44 by SP9BSL » Logged

73 Slawek
SP9BSL
positron
alter Hase
****

Offline

Posts: 443





View Profile WWW
Re:STM32 clones
« Reply #8 on: 31. July 2020, 13:56:20 »

Some interesting hot news from Gabriel about new designs:

https://groups.io/g/nanovna-users/topic/75903671

Not a word about core but i think they will use clones of STM too.
I think it would be good to open new thread with nanovna versions. This little thing is really useful...
Logged

73 Slawek
raydeeoh
Neuling
*

Offline

Posts: 1



I'm a llama!

View Profile
Re:Larger Display
« Reply #9 on: 13. August 2020, 18:52:18 »

I want to change my display to either a 5" or 7" touchscreen display, with the whole thing built into a bigger enclosure from Takachi Enclosures. Can you kindly direct me to who has successfully replaced the standard display with the larger display?

I would be very grateful for information as to how to accomplish this with my mcHF.
Logged
DF8OE
Administrator
*****

Offline

Posts: 6280



Stellvertr. OVV I40, Jugend / Nachwuchsreferent

View Profile WWW
Re:STM32 clones
« Reply #10 on: 14. August 2020, 06:54:09 »

I think he is talking about nano-VNA...

vy 73
Andreas
Logged

Wenn der Wind des Wandels weht, nageln die einen Fenster und Türen zu und verbarrikadieren sich. Die anderen gehen nach draußen und bauen Windmühlen...
qrz.com-Seite von DF8OE
-----------------------------------------------------
>>>> Die Inhalte meiner Beiträge dürfen ohne meine explizite Erlaubnis in jedwedem Medium weiterverbreitet werden! <<<<
