Firmware modificato UHSDR-QRP HF-SDR mcHF (UI-Board-v.0.6.3) 2.12.2_Mod2
« on: 14. April 2025, 11:41:03 »
|
|
Hello to everyone,
Below Source code and more for:

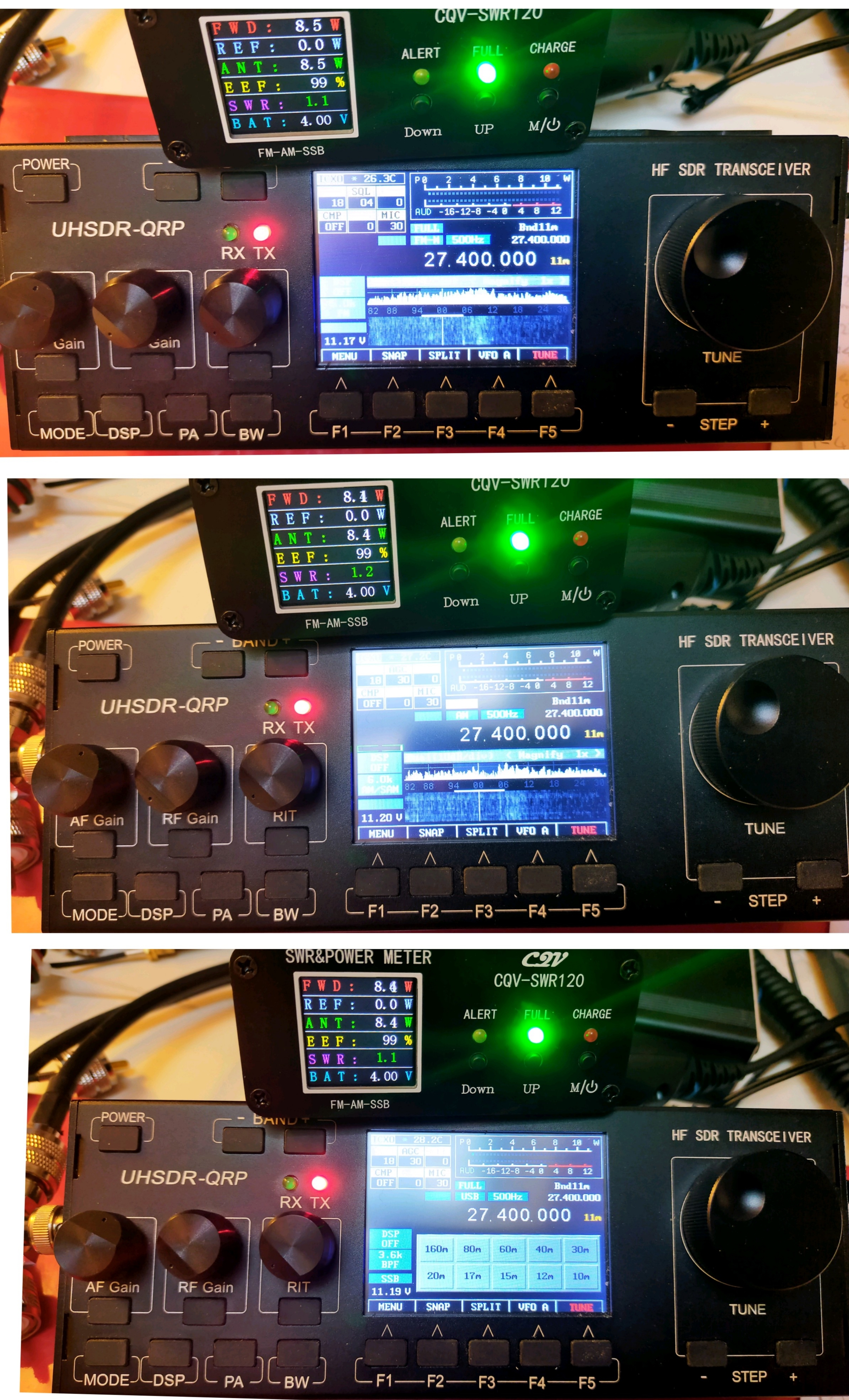

A. Fix AM modulation power problem, in AM before 2W, after mod2 10w.
B. Fix fast Table Bands selection, before you select 10M and appear 27Mhz,
after Mod2 if you select 10M appear 28Mhz
C. Save 27Mhz PA (5w/Full) parameters on EEPROM.
https://drive.google.com/drive/folders/1yZ-00LY_9btdKHZgZYb3FouELy-inMqe?usp=sharing
NOTE: I'm using a Sirio GPE 5/8 antenna (26-27-28Mhz).
Transceiver need a new power Supply 12/13Vdc 3/4 ampere or it'll go off.
Number 2 cumulative Modifications
<radio_management.c> <FILE>
.
const pa_info_t mchf_pa =
{
.name = "mcHF PA",
.reference_power = 5000.0,
.max_freq = 32000000,
.min_freq = 1800000,
.max_am_power = 10000, // ex:2000
.max_power = 10000,
};
#ifdef RF_BRD_LAPWING
const pa_info_t mchf_pa =
{
.name = "Lapwing PA",
.reference_power = 5000.0,
.max_freq = 1300 * 1000000,
.min_freq = 1240 * 1000000,
.max_am_power = 0, // Full Value //ex2000
.max_power = 20000,
};
.
|
|
<ui_bkey_brd.c> <FILE>
RedrawFunct=UiVk_RedrawBndSelVirtualKeys
};
// Modifier for 11m (27mhz) implementation
const VKey Keys_BndSel320x240[]={
{.ShortFnc=UiVk_BndSelVKeyCallBackShort, .ShortPar=17, .KeyText="160m", .TextColor=col_Keys_BndSel_npr, .PressedTextColor=col_Keys_BndSel_pr},// ex .ShortPar=16
{.ShortFnc=UiVk_BndSelVKeyCallBackShort, .ShortPar=0, .KeyText="80m", .TextColor=col_Keys_BndSel_npr, .PressedTextColor=col_Keys_BndSel_pr},
{.ShortFnc=UiVk_BndSelVKeyCallBackShort, .ShortPar=1, .KeyText="60m", .TextColor=col_Keys_BndSel_npr, .PressedTextColor=col_Keys_BndSel_pr},
{.ShortFnc=UiVk_BndSelVKeyCallBackShort, .ShortPar=2, .KeyText="40m", .TextColor=col_Keys_BndSel_npr, .PressedTextColor=col_Keys_BndSel_pr},
{.ShortFnc=UiVk_BndSelVKeyCallBackShort, .ShortPar=3, .KeyText="30m", .TextColor=col_Keys_BndSel_npr, .PressedTextColor=col_Keys_BndSel_pr},
{.ShortFnc=UiVk_BndSelVKeyCallBackShort, .ShortPar=4, .KeyText="20m", .TextColor=col_Keys_BndSel_npr, .PressedTextColor=col_Keys_BndSel_pr},
{.ShortFnc=UiVk_BndSelVKeyCallBackShort, .ShortPar=5, .KeyText="17m", .TextColor=col_Keys_BndSel_npr, .PressedTextColor=col_Keys_BndSel_pr},
{.ShortFnc=UiVk_BndSelVKeyCallBackShort, .ShortPar=6, .KeyText="15m", .TextColor=col_Keys_BndSel_npr, .PressedTextColor=col_Keys_BndSel_pr},
{.ShortFnc=UiVk_BndSelVKeyCallBackShort, .ShortPar=7, .KeyText="12m", .TextColor=col_Keys_BndSel_npr, .PressedTextColor=col_Keys_BndSel_pr},
{.ShortFnc=UiVk_BndSelVKeyCallBackShort, .ShortPar=9, .KeyText="10m", .TextColor=col_Keys_BndSel_npr, .PressedTextColor=col_Keys_BndSel_pr} //ex.ShortPar=8
};
.
.
|
|
<<  NEVER A JOY >>
|
